1.1 Simple Features of RDBMSs

Figure 1. A simple UML data model.

1.2 Advanced Use of RDBMSs

1. Object storage.  To store an object in a relational database you need to flatten it – create a data representation of the object – because relational databases only store data. To retrieve the object you would read the data from the database and then create the object, often referred to as restoring the object, based on that data. Although storing objects in a relational database sounds like a simple thing to achieve, practice shows that it isn’t. This is due to the object-relational impedance mismatch, the fact that relational database technology and object technology are based on different underlying theories, a topic discussed in The Object-Relational (O/R) Impedance Mismatch.  To store objects successfully in relational databases you need to learn how to map your object schema to your relational database schema.
2. Implementing behavior within the database.  Behavior is implemented in a relational database via stored procedures and/or stored functions that can be invoked internally within the database and often by external applications.  Stored functions and procedures are operations that run within an RDBMS, the difference being what the operation can return and whether it can be invoked in a query. The differences aren’t important for our purposes so the term “stored procedure” will be used to refer to both stored functions and stored procedures.  In the past stored procedures were written in a proprietary language, such as Oracle’s PL/SQL, although now Java is quickly becoming the language of choice for database programming.  A stored procedure typically runs some SQL code, massages the data, and then hands back a response in the form of zero or more records, or a response code, or as a database error message.  Effective use of stored procedures is discussed in detail in Implementation Strategies for Persisting Objects in RDBs.
3. Concurrency control.  Consider an airline reservation system.  There is a flight with one seat left on it, and two people are trying to reserve that seat at the same time. Both people check the flight status and are told that a seat is still available.  Both enter their payment information and click the reservation button at the same time. What should happen? If the system is working properly only one person should be given a seat and the other should be told that there is no longer one available.  Concurrency control is what makes this happen.  Concurrency control must be implemented throughout your object source code and within your database.
4. Transaction control.  A transaction is a collection of actions on your database – such as the saving of, retrieval of, or deletion of data – which form a work unit.  A flat transactions is an “all-or-nothing” approach where all the actions must either succeed or be rolled back (canceled).  A nested transaction is an approach where some of the actions are transactions in their own right. These sub-transactions are committed once successful and are not rolled back if the larger transaction fails. Transactions may also be short-lived, running in thousandths of a second, or long-lived, taking hours, days, weeks, or even months to complete.  Transaction control is a critical concept for all developers to understand.
5. Enforcing referential integrity. Referential integrity (RI) is the assurance that a reference from one entity to another entity is valid. For example, if a customer references an address, then that address must exist. If the address is deleted then all references to it must also be removed, otherwise your system must not allow the deletion. Contrary to popular belief, RI isn’t just a database issue, it’s an issue for your entire system. A customer is implemented as an object within a Java application and as one or more records in your database – addresses are also implemented as objects and as rows.  To delete an address, you must remove the address object from memory, any direct or indirect references to it (an indirect reference to an address would include a customer object knowing the value of the AddressID, the primary key of the address in the database), the address row(s) from your database, and any references to it (via foreign keys) in your database. To complicate matters, if you have a farm of application servers that address object could exist simultaneously on several machines.  Furthermore, if you have other applications accessing your database then it is possible that they too have representations of the address in their memory as well. Worse yet, if the address is stored in several places (e.g. different databases) you should also consider taking this into account. All developers should understand basic strategies for implementing referential integrity.

2. Coupling: Your Greatest Enemy

1. Your application source code. When you change your database schema you must also change the source code within your application that accesses the changed portion of the schema.   Figure 2 depicts the best-case scenario – when it is only your application code that is coupled to your database schema. This situation is traditionally referred to as a stovepipe. These situations do exist and are often referred to as stand-alone applications, stovepipe systems, or greenfield projects.  Count yourself lucky if this is your situation because it is very rare in practice.

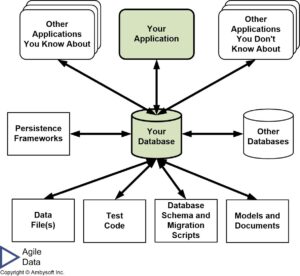

2. Other application source code.  Figure 3 depicts the worst-case scenario for relational databases – a wide variety of software systems are coupled to your database schema, a situation that is quite common with existing production databases.  It is quite common to find that in addition to the application that your team is currently working on that other applications, some of which you know about and some of which you don’t, are also coupled to your database.  Perhaps an online system reads and writes to your database.  Perhaps a manager has written a spreadsheet, unbeknownst to you, that reads data from your database that she uses to summarize information critical to her job.
3. Data load source code.  Data loads from other sources, such as government provided tax tables or your own test data, are often coupled to your database schema.
4. Data extract source code.  There may be data extraction scripts or programs that read data from your database, perhaps to produce an XML data file or simply so your data can be loaded into another database.
5. Persistence frameworks/layers.  A persistence framework encapsulates the logic for mapping application classes to persistent storage sources such as your database.  When you refactor your database schema you will need to update the meta data, or the source code as the case may be, which describes the mappings.
6. Itself. Coupling exists within your database. A single column is coupled to any stored procedure that references it, other tables that use the column as a foreign key, any view that references the column, and so on. A simple change could result in several changes throughout your database.
7. Data migration scripts.  Changes to your database schema will require changes to your data migration scripts.
8. Test code.  Testing code includes any source code that puts your database into a known state, that performs transactions that affect your database, and that reads the results from the database to compare it against expected results.  Clearly this code may need to be updated to reflect any database schema changes that you make.
9. Documentation.  Some of the most important documentation that you are likely to keep pertains to your physical database schema, including but not limited to physical data models and descriptive meta data.  When your database schema changes the documentation describing will also need to change accordingly. Although Agile Modeling implores you to Update Only When It Hurts, that your documentation doesn’t have to be perfectly in synch with your schema at all times, the reality is that you will need to update your docs at some point.

3. Additional Challenges With RDBMSs

1. Performance issues are difficult to predict.  When you are working with a shared database, such as the situation implied in Figure 3, you may find that the performance characteristics of your database are hard to predict because each application accesses the database in its own unique way.  For example, perhaps one legacy application updates information pertaining to items for sale sporadically throughout the month, enabling a human operator to add new items or update existing ones, activity that doesn’t really affect your application’s performance in a meaningful way. However, this same application also performs batch loads of items available for sale via other companies that you have partnered with, items that you want to carry on your web site as soon as they are available.  These batch loads can take several minutes, during which period the Item table is under heavy load and thus your online application is potentially affected.
2. Data integrity is difficult to ensure with shared databases. Because no single application has control over the data it is very difficult to be sure that all applications are operating under the same business principles.  For example, your application may consider an order as fulfilled once it has been shipped and a payment has been received.  The original legacy application that is still in use by your customer support representatives to take orders over the phone may consider an order as fulfilled once it has been shipped, the payment received, and the payment deposited into your bank account.  A slight difference in the way that a fundamental business rule has been implemented may have serious business implications for any application that accesses the shared databases. Less subtly, imagine what would happen if your online order taking application calculates the total for an order and stores it in the order table, whereas the legacy application calculates the subtotals only for order items but does not total the order. When the order fulfillment application sees an order with no total it calculates the total, and appropriate taxes, whereas if a total already exists it uses the existing figure. If a customer makes an order online and then calls back a few hours later and has one of your customer service representatives modify their existing order, perhaps to add several items to it, the order total is no longer current because it has not been updated properly.  Referential integrity issues such as this are covered in detail in the Implementing Referential Integrity article.
3. Operational databases require different design strategies than reporting databases.  The schemas of operational databases reflect the operational needs of the applications that access them, often resulting in a reasonably normalized schema with some portions of it denormalized for performance reasons. Reporting databases, on the other hand, are typically highly denormalized with significant data redundancy within them to support a wide range of reporting needs.

4. Encapsulation: Your Greatest Ally

Figure 4. The scenarios revisited.

Things aren’t quite so ideal for the worst-case scenario. Although it is possible that all applications could take advantage of your encapsulation strategy the reality is that only a subset will be able to.  Platform incompatibility can be an issue – perhaps your data access objects are written in Java but some legacy applications are written using technologies that can’t easily access Java.  Perhaps you’ve chosen not to rework some of your legacy applications simply to use the database encapsulation strategy. Perhaps some applications already have an encapsulation strategy in place (if so, you might want to consider reusing the existing strategy instead of building your own). Perhaps you want to use technologies, such as a bulk load facility, that require direct access to the database schema. The point to be made is that a portion of your organization’s application will be able to take advantage of your encapsulation strategy and some won’t.  There is still a benefit to doing this, you are reducing coupling and therefore reducing your development costs and maintenance burden, the problem is that it isn’t a fully realized benefit.

Another advantage of encapsulating access to a database is that it gives you a common place, in addition to the database itself, to implement data-oriented business rules.

5. Beyond RDBMSs: You Actually Have a Choice

1. Object/relational databases. Object/relational databases (ORDBs), or more properly object/relational database management systems (ORDBMSs), add new object storage capabilities to RDBMSs. ORDBs, add new facilities to integrate management of traditional fielded data, complex objects such as time-series and geo-spatial data and diverse binary media such as audio, video, images, and (sometimes) Java applets.  ORDBMSs basically add to RDBMSs features such as defined data types, for example you could define a data type called SurfaceAddress that has all of the attributes and behaviors of an address, as well as the ability to navigate objects in addition to an RDBMS’s ability to join tables. By implementing objects within the database, an ORDBMS can execute complex analytical and data manipulation operations to search and transform multimedia and other complex objects. ORDBs support the robust transaction and data-management features of RDBMSs while at the same time offer a limited form of the flexibility of object-oriented databases. Because of ORDBMSs relational foundation, database administrators work with familiar tabular structures and data definition languages (DDLs) and programmers access them via familiar approaches such as SQL3, JDBC, and proprietary call interfaces.
2. Object databases.  Object databases (ODBs), also known as object-oriented databases (OODBs) or object-oriented database management systems (OODBMSs), nearly seamlessly add database/persistence functionality to object programming languages. In other words, full-fledged objects are implemented in the database.  They bring much more than persistent storage of programming language objects. ODBs extend the semantics of Java to provide full-featured database programming capability, via new class libraries specific to the ODB vendor, while retaining native language compatibility. A major benefit of this approach is the unification of the application and database development into a seamless model. As a result, applications require less code, use more natural persistence modeling, and code bases are easier to maintain. Object-oriented developers can write complete database applications with a modest amount of additional effort without the need to marshal their objects into flatten data structures for storage, as a result forgoing the marshalling overhead inherent with other persistence mechanism technologies (such as RDBs). This one-to-one mapping of application objects to database objects provides higher performance management of objects and enables better management of the complex interrelationships between objects.
3. Native XML databases. Native XML databases store information as XML documents following one of two approaches: First, a native XML database will either store a modified form of the entire XML document in the file system, perhaps in a compressed or pre-parsed binary form. Second, a native XML database may opt to map the structure of the document to the database, for example mapping the Document Object Model (DOM) to internal structures such as Elements, Attributes, and Text – exactly what is mapped depends on the database.  The most important difference between these approaches, from the point of view of an application developer, is the way they are accessed: with the first approach the only interface to the data is XML and related technologies, such as XPath (a language design specifically for addressing parts of an XML document, visit www.w3.org for details) or the DOM whereas with the second approach the database should be accessible via standard technologies such as JDBC.  The important thing to understand about native XML databases is that they work with the internal structures of the XML documents – they don’t just store them as a binary large object (BLOB) in the database.
4. Flat files.  Flat files, such as .TXT or. CSV (comma separated value) files, are commonly used to store data. A single file can be used to store one type of data structure, such as customer information or sales transaction information, or through a coding and formatting strategy the structures of several types of data structures.  One approach to flat file organization is either to have data values separated by a pre-defined character, such as a comma, or tag, such as </FirstName> in an XML document. Another common approach is to delimit data values by size – the first 20 characters of the row represent the first name of the customer, the next 20 characters represent the surname, and so on.
5. Hierarchical databases. Hierarchical databases link data structures together like a family tree such that each record type has only one owner, for example an order is owned by only one customer. Hierarchical structures were widely used in the first mainframe database management systems, and are still a very common source of data in many large organizations. Hierarchical databases fell out of favor with the advent of relational databases due to their lack of flexibility because it wouldn’t easily support data access outside the original design of the data structure.  For example, in the customer-order schema you could only access an order through a customer, you couldn’t easily find all the orders that included the sale of a widget because the schema isn’t designed to all that.

6. Prevalence layer.  Klaus Wuestefeld defines prevalence as “transparent persistence, fault-tolerance and load-balancing of the execution of the business logic of an information system through the use of state snapshots as well as command and query queuing or logging”. A prevalence layer is effectively a simple persistence framework that serializes objects and writes them to log files. From the point of view of developers all objects are cached in memory and the persistence of the objects is truly treated as a background task that the developers don’t need to worry about.

Table 3. Potential Applications for Data Storage Mechanisms.

6. Closing Thoughts

RDBMSs technology isn’t perfect, no technology is, but it's the one in most common use so we need to learn how to work with it effectively.  The reason why I have spent so much effort discussing the drawbacks of this technology is that it is important that you understand what it is that you’re working with.  Many writers will focus on the benefits of RDBMSs, and there are clearly many benefits, but ignore the drawbacks.  Other writers will focus on academic issues such as the concept that there is no “true relational database” that fulfills all of E.F. Codd’s original twelve rules, not to mention the more finely defined features of his later writings. That’s an interesting issue to discuss over beer but I prefer to focus on the practical issues that developers face day to day when working with this technology.
